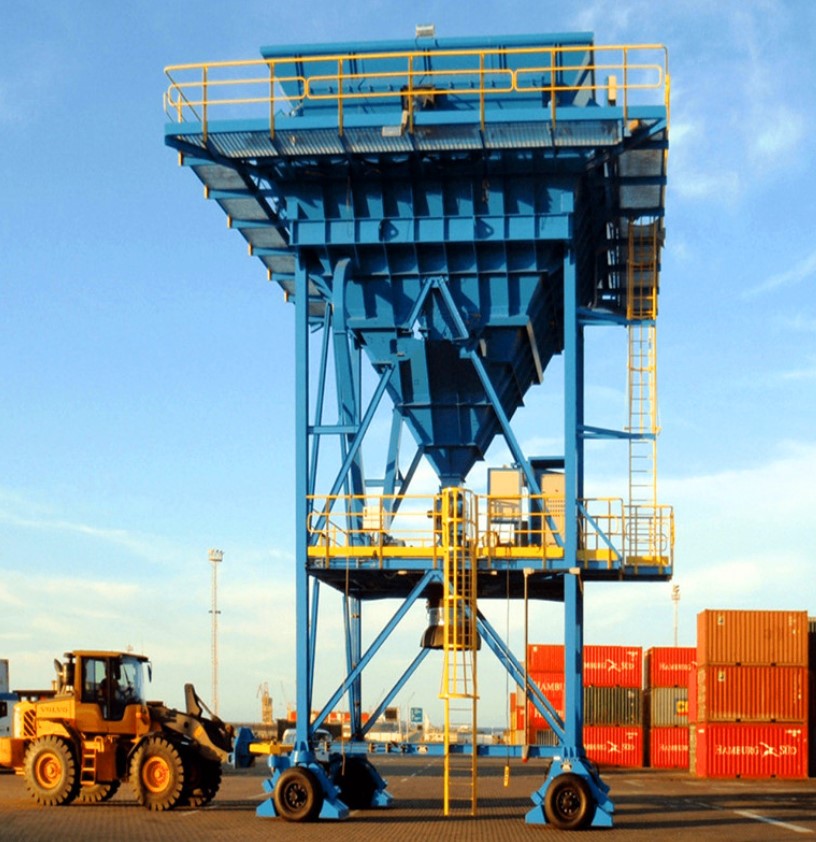

The SSI ECO hopper is designed as a dust controlled, grab or belt conveyor unloading hopper, is an economical and ecologically sensitive solution. It`s customized design to suit the property of any bulk materials. And fulfill all needs for the efficient import of dry bulk materials.
The SSI ECO hoppers are designed based on the client`s specification requirement.
The SSI dust controlled hoppers is designed to solve the major issue for all ports when handling bulk materials.
The environmental protection dust suppressed hopper, which comprises a hopper support and a hopper body with a valve and a material guide groove under it. The hopper support is also provided with a dust suppressed component, and the dust suction port of the dust removal component is located directly above the ground belt conveyor The utility model has the advantages that during the whole conveying process from the hopper outlet to the ground belt conveyor, the powdery materials are transported at a slow speed, and the dust suppressed components are added to absorb the scattered dust, which can greatly purify the air at the transportation site, ensure that the loading and unloading dust does not leak out and protect the environment.
Technical specification
output | 400t/h |
material | cement /coal |
density | 1.3t/m³ |
volume | 40m³ |
application | discharge to truck |
pressure on each support landing | 30t |
full load of hopper | 80t |
size of discharge opening | 400mm*400mm |
power of fan motor | 22kw*3 |
noise | less than 80 DB |
travel speed | 10m/min |
power consumption | 105kw |
dead weight | 75t |
General drawing
