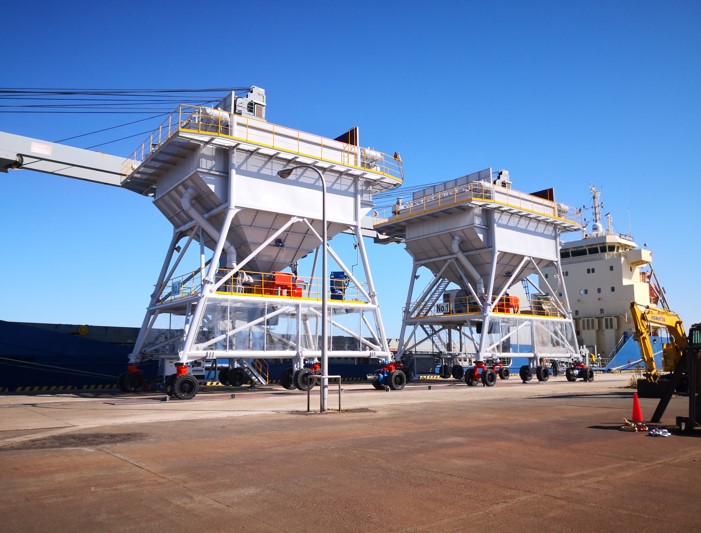

Bag filter dust controlled Eco hopper
The SSI ECO hopper is designed as a dust-controlled, grab or belt conveyor unloading hopper, is an economical and ecologically sensitive solution. It`s a customized design to suit the property of any bulk materials. And fulfill all needs for the efficient import of dry bulk materials.
The SSI ECO hoppers are designed based on the client`s specification requirement.
Technical specification
| output | 1000t/h |
| material | grain material |
| density | 0.85t/m³ |
| volume | 50m³ |
| application | discharge to truck |
| pressure on each support landing | 35t |
| full load of hopper | 80t |
| size of discharge opening | 800mm*800mm |
| power of fan motor | 15kw*2+7.5kw*2 |
| noise | less than 80 DB |
| HPU | 7.5kw |
| power consumption | 105kw |
| dead weight | 56t |
General drawing
